WELCOME...Thank you for visiting my Blog, just relax, layback and enjoy my Amateur Radio Blog.

This what we called a "Ham Radio"...

A radio communications service for the purpose of self-training, intercommunication, and technical investigations carried out by amateurs, that is, duly authorized persons interested in radio technique solely with a personal aim and without pecuniary interest.

Ham radio is an international fraternity that transcends the barriers of nationality, race, age, sex, and class. Whenever you take to the air as a ham, you never know who you might find to talk to. It might be an old friend you've known for years; it might be a new friend you haven't met before. Why not join the millions around the world who already have their ham license? They would all like to say hello to you!

My APRS Tracker kit, 2010.

Hi guys..!, I'm back in the business again with my new gadget..:P. It's a APRS tracker made in Thailand, since we have been heard all about this tracker had made form oversea like USA, INDIA, our local homebrew..etc. But I've found this tracker just from our neighborhood country it's call EZ tracker.
This EZ tracker was developed & design by their local boys Mr PORNCHAI OLARIKDED aka Paul his callsign e20gjw and its also come with the programming software & firmware. The latest version of his firmware are 0.14B which I've been used that right now. The total cost for this unit + GPS to run this APRS on the move is less than RM260 without radio. hmmm its sound cheap right? so what are you guys watting for..? Ok here are the EZ tracker which belongs to me....enjoy!


This are the component that you need to assembled it.

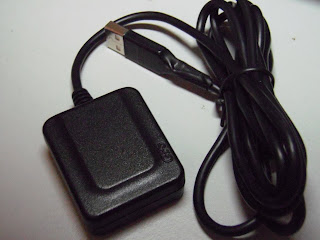

The GPS is made from Taiwan, you need to terminated the USB connector.




The EZ tracker box.




And this is the special unit design by me its a "Junction Terminal Unit" it can works with HT and mobile rig, and its also work with 9V battery.
sorry..this unit never come with the EZ tracker..!



And this are the connection to the radio its 2 in 1.




Another thing I have to homebrew "The Tracker Holder"..hahahah..




Last but not least my APRS tracker kit and ready to move around..! :P




My tracker setup inside my car....9w2woc-9




Ok here are some of my tracking route 9w2woc-9 via aprs.fi. My iGate can secure from Penang Bridge up to Penang airport area, and the rest of town area I trigged at 9m2lc & 9m2px iGate.

My dream HT...Yeasu VX-8R



Well guys at last my dreams came truth, Its Yeasu VX-8R all the while I've been dream to own it finally mine. Although this model just only a year in Malaysia market I think I'm not to late to owned it. I received this HT yesterday and I try to master the function but it seem like this little tiny HT with a big function..! The manual shown about 168 pages will make my head goes round :P. But I've tried to set it with help by the manual book. Hmmm looks like I already feel the touch..all function is on the dial knob only, just twist it walla!! As for now crazy to buy the GPS unit for fully utilize this HT. Need to survey the market price for this GPS unit because not many people using the HT with GPS unit. So I think this VX-8R is the final HT I'm gonna owned..NO MORE HT FOR ME..! unless...Hmmmm :P

My new toy...CB radio Midland 40 channel

Sorry it's been late post for this article, supposedly it posted before I posted up my yagi antenna..but how cares? as long that I can share it with you all guys....so lets start with the story.

The Midland 1001Z two-way, 40-channel CB radio represents the state of the art in CB engineering. Incorporating microprocessor controlled PLL circuitry for precise tuning, it boasts 4 Watts of power, an emergency channel, digital power signal strength meter, squelch control, external speaker and PA speaker jacks, and plenty more. Installation is a breeze in most cars, trucks and RVs. Perfect for novices and long-time CB users alike.

1001Z Features

4 Watt Output Power
The maximum power allowed to give you the maximum communication range.

CB/pa switch
Allows the CB to be used as a Public Address System when paired with a PA speaker.

Instant Channel 9
Immediate access to emergency - channel 9.

RF Gain
Adjusts reception sensitivity range for clear communication.

Front panel locking mic connector
Easy to connect microphone locks securely to CB.

Digital Power meter
Displays incoming signal strength and RF output power.

Squelch control
Removes background noise.

LED Display
Large high-intensity channel readout. Easy to read day or night.

Controls
On/OFF/Volume knob, Squelch knob, RF Gain knob, Tuning knob, CB/PA switch, Instant Channel 9 switch

Jacks and connectors
4 pin locking mic connector, antenna connector, external speaker connector, PA speaker connector and DC power cord connector.

So at the moment there's no activities as I monitor all the channel...not so sure lah because I'm using a long wire only...so gonna built one CB antenna soon. Maybe incoming audio will come out after that...hahahah

4 element yagi beam (portable/fix)

Hi guys I'm back again..this time during my free time homebrew 4 element yagi with gamma match. Its been quite a long time I never hold my tool box but recently my hand so itchy ..hahahah. So come out with this homebrew thingy again..!!! For this antenna I've spend around less than rm50 I guess..! and it takes about 2 days only guys...WTF?...so cut the crap and let me start with the journey of this antenna....


This are the main stuff I used for the yagi....




My work station, house main dining table...hahaha, cutting the element & fix into a boom.




80% almost ready...dr1, 2 & driven ele with gamma match done..!




A few cable clips attached at the boom...




Walla DONE...standing like a handsome guy...hahaha..




this is the gamma match stub that you can adjust your SWR according to frequency you wanna TX...



The moment that I've been waiting for..so suspen wor!!..(SWR Checking) But....
surprisely all tested under 1.5..yeahh!
144 = 1.1
145 = 1.1
146 = 1.25
147 = 1.3



Yahoo it's all done for now...very happy lor...but abit pening lalat coz tested inside the house dude...hahahah


This antenna ready to launch anytime during DXpedition, RACEs, as a event station, base fix preferred at the roof top.
Coming soon maybe another antenna project again, but this time its gonna be a BIG one....stay tune guys..Thanks 73.

Malaysian Nation Wide Light House Weekend 2009 (MLHW 09)

Hi guys I'm back again with amateur radio program, even now days I'm so busy with my business but I need a break with my hobby.
This event is not a contest, there are no prizes or any other enticements to participate and is therefore free of charge. And also promote public awareness of ham radio and lighthouses in Malaysia. To gain experience for DX-peditions for the Ham Radio operators and to promote “exotic” Malaysia among International DXCC chasers or seekers.
Here are some picture taken by Jon 9w2acy on that event..


Fort Cornwallis Penang, Malaysia.



The DX lighthouse Shack



Its not easy as you think to DXing....:P



But who cares..I'm already took part on this event..haha


Thanks to those parties who organised that event, and also contact perdana to new station I met up on that night...Tok penghulu 9w2art thanks u for droping by on that night also...Thanks guys..

Penang ARDF Event, May 2nd, 2009 Fox Hunt





Hi Fellow Hunters,

This is the Bulletin1 for the Penang ARDF Event to br held on May 2nd, 2009.

Date and Time:
May 2nd, 2009 (Saturday); 8:00am.
Estimate to last about 3 hours.
Registration closes at 8:30am.


Venue:
Botanical Gardens, Penang
and MPPP Park (Youth Park) Area.


Starting Point:
Taman Rekreasi Kuari.

( GPS Location: N5 26 14.7 E100 17 21.5 )
The former quarry site besides
the jeep track going up Penang Hill.

For more details, please visit MyARDF website

Or can call me on V60 @ 146.550

See you at the hunt!


V60 Ham Community Penang...

After a few session of eyeball, a few HAM radio enthusiast decided to put a blog n forum for HAM radio n other activities related to ham radio or non-ham radio such as outdoor activities, movie or anything that come across in their mind as long that is a healthy. These HAM Radio operator can always be heard over the 146.550mhz ham allocated frequencies. they call themselves as V60 Community. They are not a club but just a group of ham that hang out together with the same interests. All HAM are welcome to join them, just drop by at their usual hang out at JJ Cafe @ Jeti Jerjak. Do visit their webblog n Forum at :

V60 Community Blog

V60 Community Forum

This post taken from 9W2ACY blogspot....
